sunwoda residential energy storage system Atrix series

Modular Lithium-ion Battery Sunwoda Atrix Basic SE

Easy to install and plug-and-play
Home Products
MEET Scene Parameter Contact
SUNWODA INSIDE, POWER YOUR LIFE
Take Control of Your Power with the Atrix Series

Household energy storage system Atrix series is an efficient, advanced, and safe energy supply system that can reduce your electricity bill by storing excess clean energy generated by the solar panel, or energy from the grid during off-peak hours. It is mainly used for residential self-generation, peak shaving and valley filling, emergency power backup, and power optimization in residential and commercial buildings. The Atrix series can be expanded from 5kWh of a single module to 1.8MWh of 360 battery modules, allowing homeowners to build their own energy storage system flexibly.
Flexible application
Modular and cabinet installation
Easy to install
With a modular, lightweight, and plug-and-play design, the Atrix series only takes 2 people to install
Real-Time Monitoring
(Optional)
Homeowners can control and monitor their
Atrix series via APP anytime and anywhere
Sunwoda Inside, Power Your Life
Flexible Home Energy Storage with Atrix Basic
Atrix Basic with renewable energy system
Store Energy for When You Need It
When charged with electricity from compatible renewable energy sources, such as solar PV, Atrix Basic can store it for later use, helping power your home at night and provide backup during grid outages.
Atrix Basic home energy management app
Home Energy Management at Your Fingertips
With an intuitive energy management app, homeowners can monitor household energy generation and consumption at home or on the go using compatible Android, iOS, and web platforms.
Atrix Basic electricity cost management
Manage Your Electricity Costs
Where time-of-use tariffs are available, Atrix Basic can store electricity during lower-price periods for use during higher-price periods. This may help reduce electricity costs, depending on local tariffs, system configuration, and household energy use.
Atrix Basic on-grid and backup power application
Flexible On-Grid and Backup Operation
Atrix Basic supports a range of residential energy storage applications, helping households manage everyday energy use and maintain backup power when the system is appropriately configured.

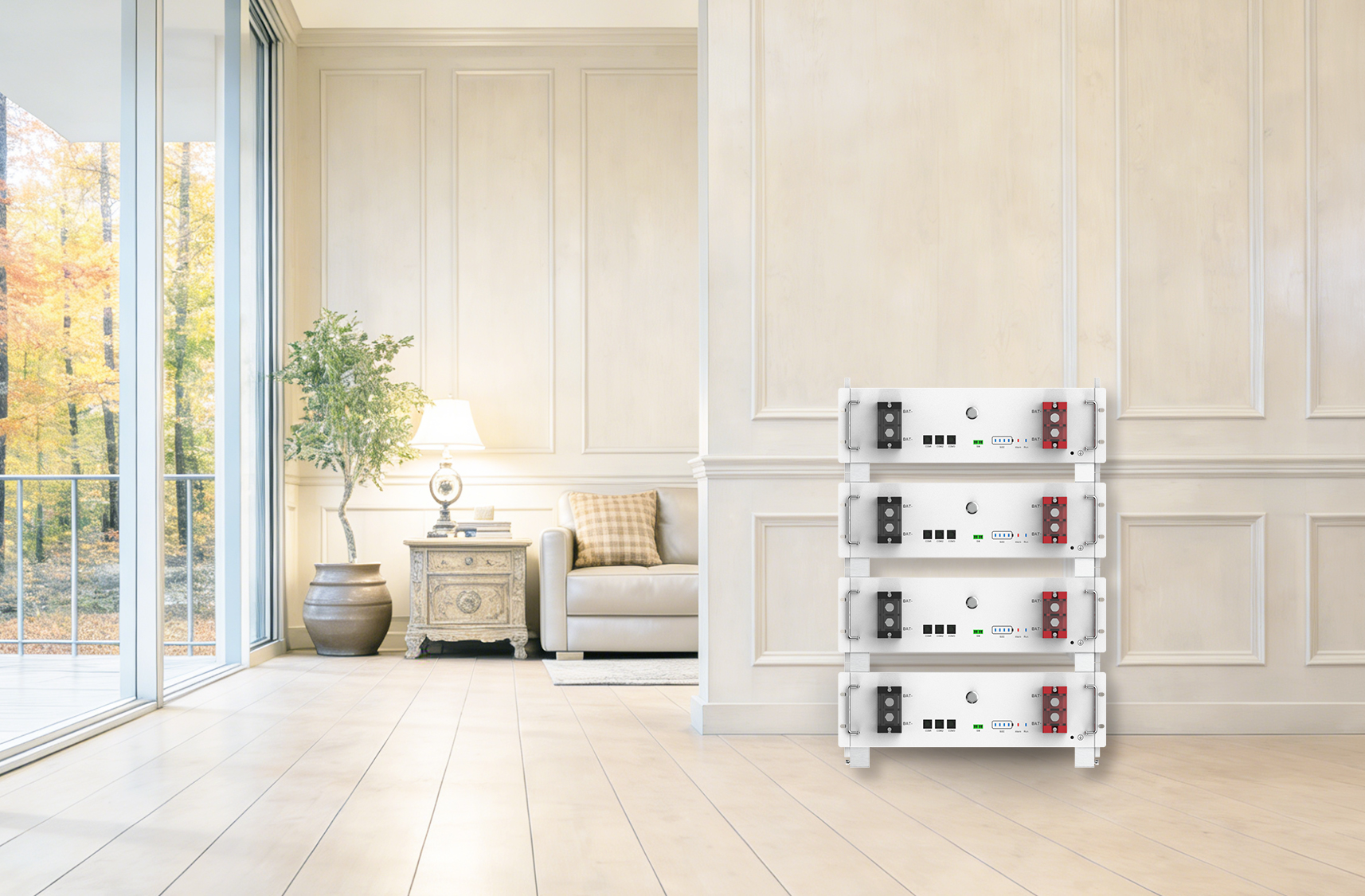

Sunwoda Atrix Basic modular residential energy storage system
Modular Design for Flexible Installation
Atrix Basic is a modular home energy storage system that can be expanded from a single 5kWh module to 1.8MWh with up to 360 battery modules using an optional Data Box, providing flexibility for different system capacity requirements.
Atrix Basic residential energy management
Smarter Energy Use at Home
Atrix Basic helps households store electricity for later use and manage energy more flexibly. When charged from compatible renewable energy sources, such as solar PV, it can help increase the use of locally generated electricity and reduce electricity drawn from the grid.
parameter
Understand its internal structure in detail
sunwoda modular battery Atrix basic series
sunwoda modular battery Atrix basic series
sunwoda modular battery Atrix basic series
sunwoda modular battery Atrix basic series

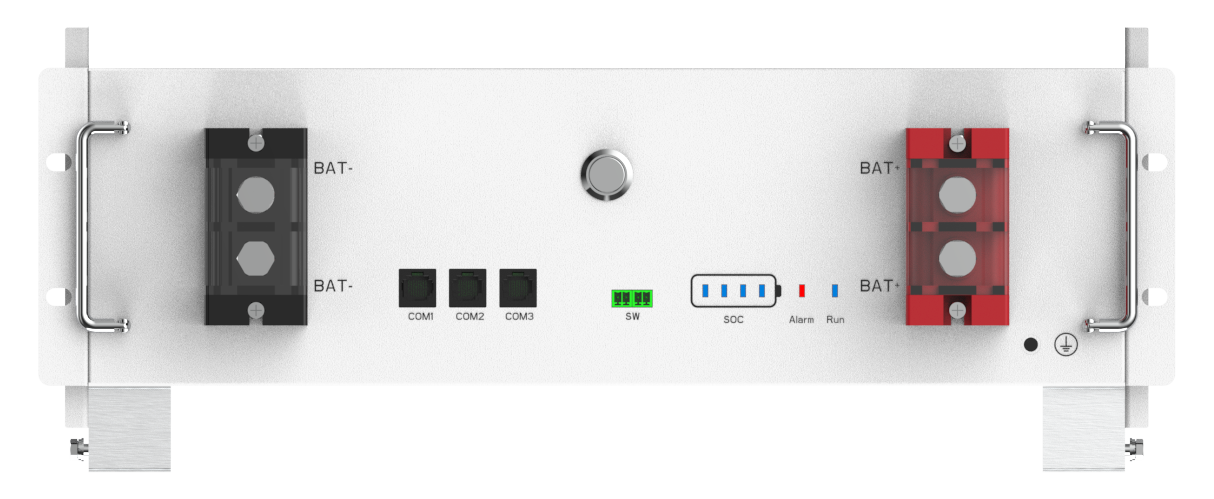

Atrix Basic-SE5 Atrix Basic-SE10 Atrix Basic-SE15 Atrix Basic-SE20
  • Nominal energy
    5kWh
  • Usable energy (100% DOD) 1
    5kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    50A/80A
  • Max. charge/discharge current 2
    100A/100A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 360 in parallel(Optional Data Box), Max. 1.8 MWh
  • Operating temperature

    Discharging:-20℃ to 50℃, Charging:0℃ to 50℃

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    45kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification

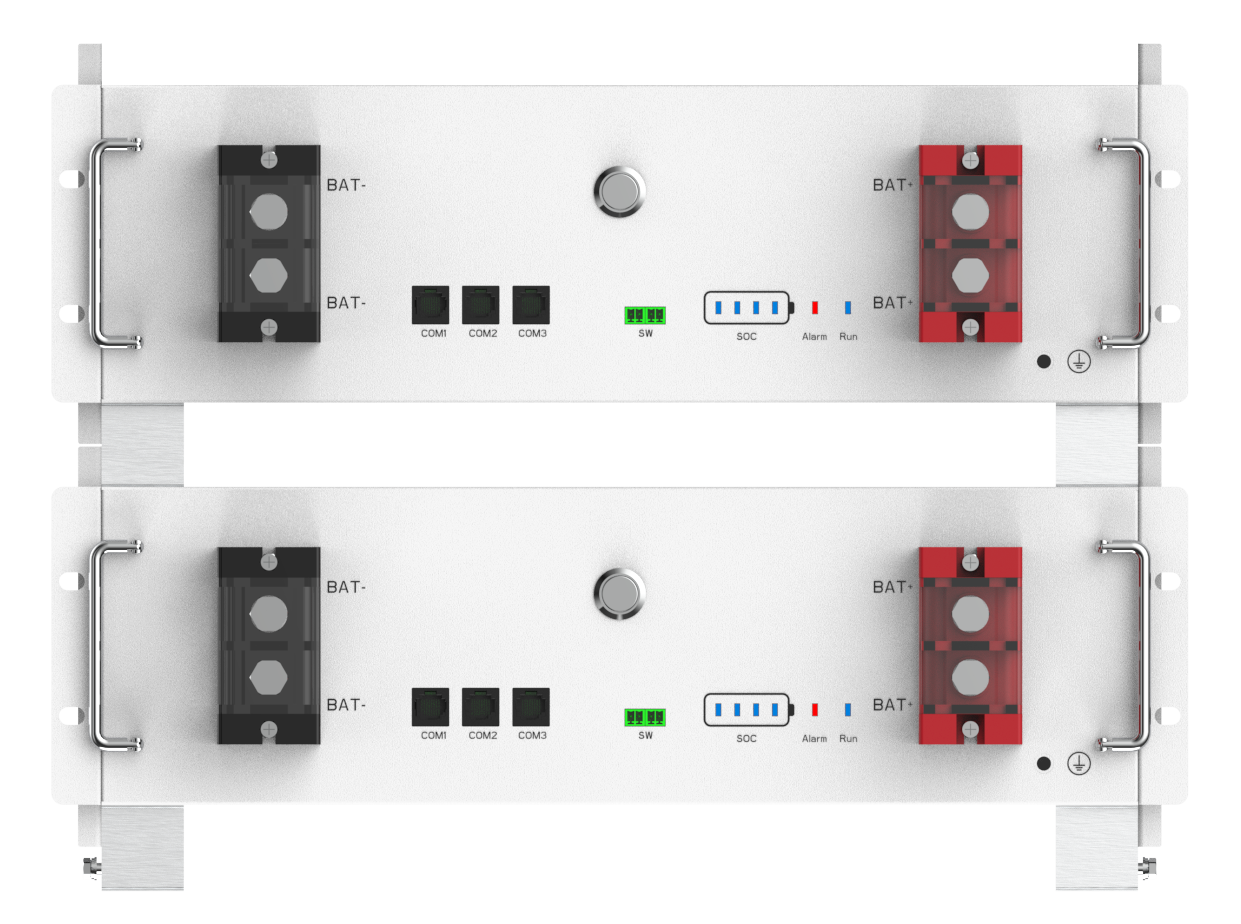

  • Nominal energy
    10kWh
  • Usable energy (100% DOD) 1
    10kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    100A/160A
  • Max. charge/discharge current 2
    180A/180A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 360 in parallel（Optional Data Box), Max. 1.8MWh
  • Operating temperature

    Discharging:-20℃ to 50℃, Charging:0℃ to 50℃

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    90kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification

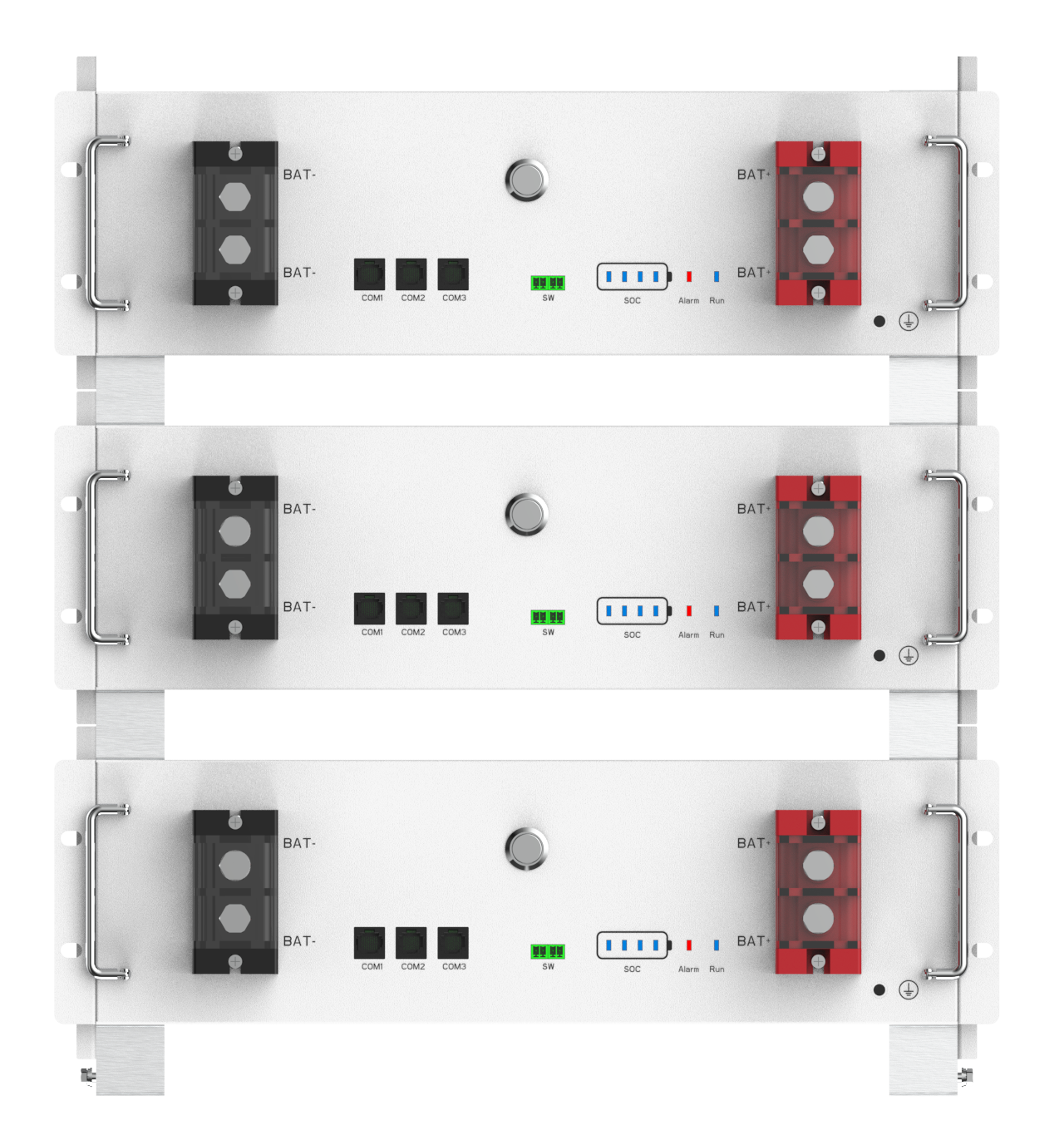

  • Nominal energy
    15kWh
  • Usable energy (100% DOD) 1
    15kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    150A/240A
  • Max. charge/discharge current 2
    240A/240A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 360 in parallel(Optional Data Box), Max. 1.8 MWh
  • Operating temperature

    Discharging:-20℃ to 50℃, Charging:0℃ to 50℃

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    135kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification

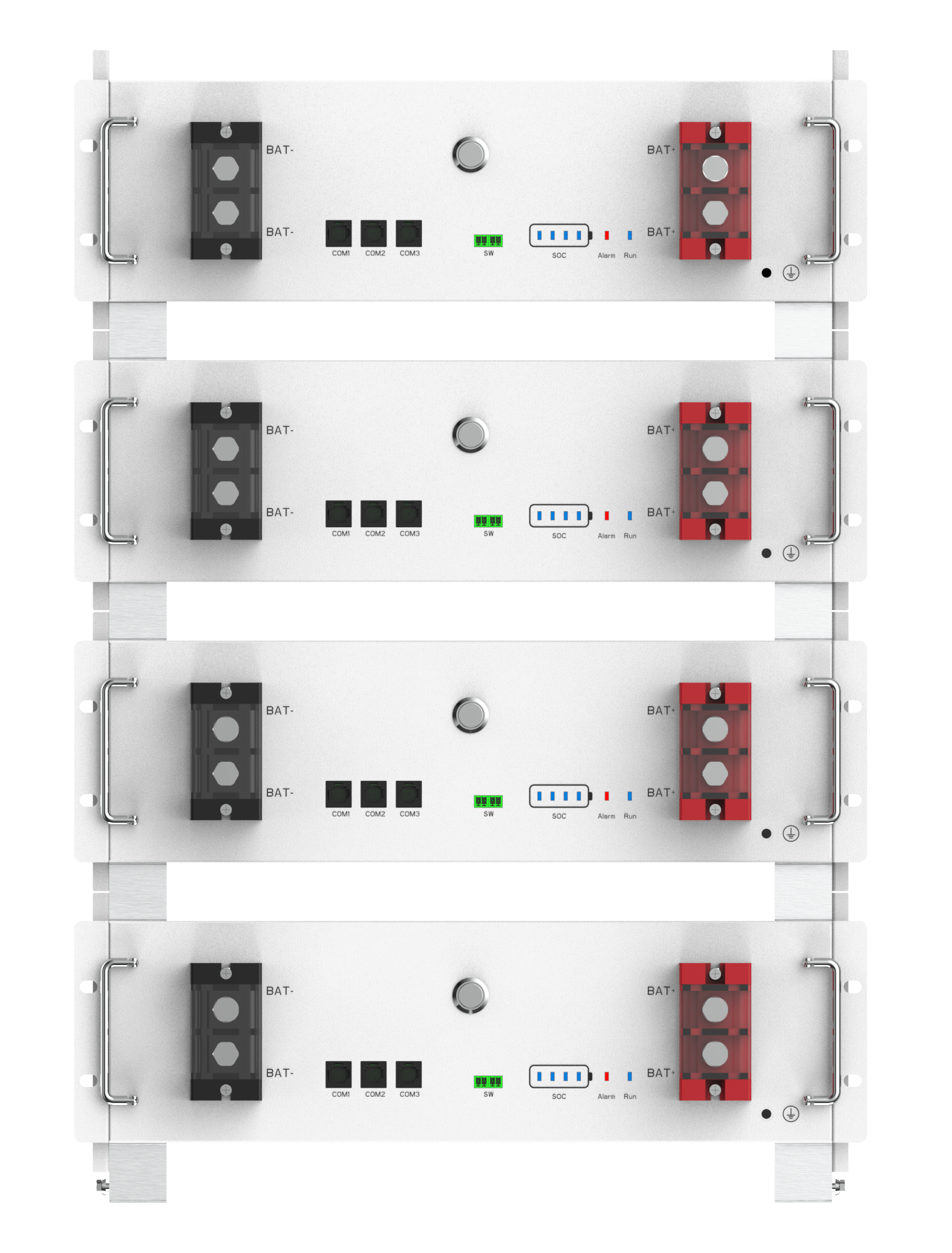

  • Nominal energy
    20kWh
  • Usable energy (100% DOD) 1
    20kWh
  • Rated voltage
    51.2V
  • Charge/discharge cut off voltage
    44.8V~55.2V
  • Rated charge/discharge current 2
    200A/320A
  • Max. charge/discharge current 2
    320A/320A
  • Communication interface
    CAN 2.0/RS485
  • Scalability
    Max. 360 in parallel(Optional Data Box), Max. 1.8 MWh
  • Operating temperature

    Discharging:-20℃ to 50℃, Charging:0℃ to 50℃

  • Dimensions (W*H*D, mm)

    440*135*410/PACK

  • Weight

    180kg

  • Enclosure protection rating

    IP20

  • Warranty 3

    10 years

  • Certifications

    IEC62619/CE/UN38.3

  • 1. Test conditions: 100% DOD, 0.2C charge & discharge at 25℃.
  • 2. The current is affected by temperature and SOC.
  • 3. For warranty instructions, please refer to the warranty terms.
Brochure/User Manual
Certification
