sunwoda Containerized Liquid Cooling BESS

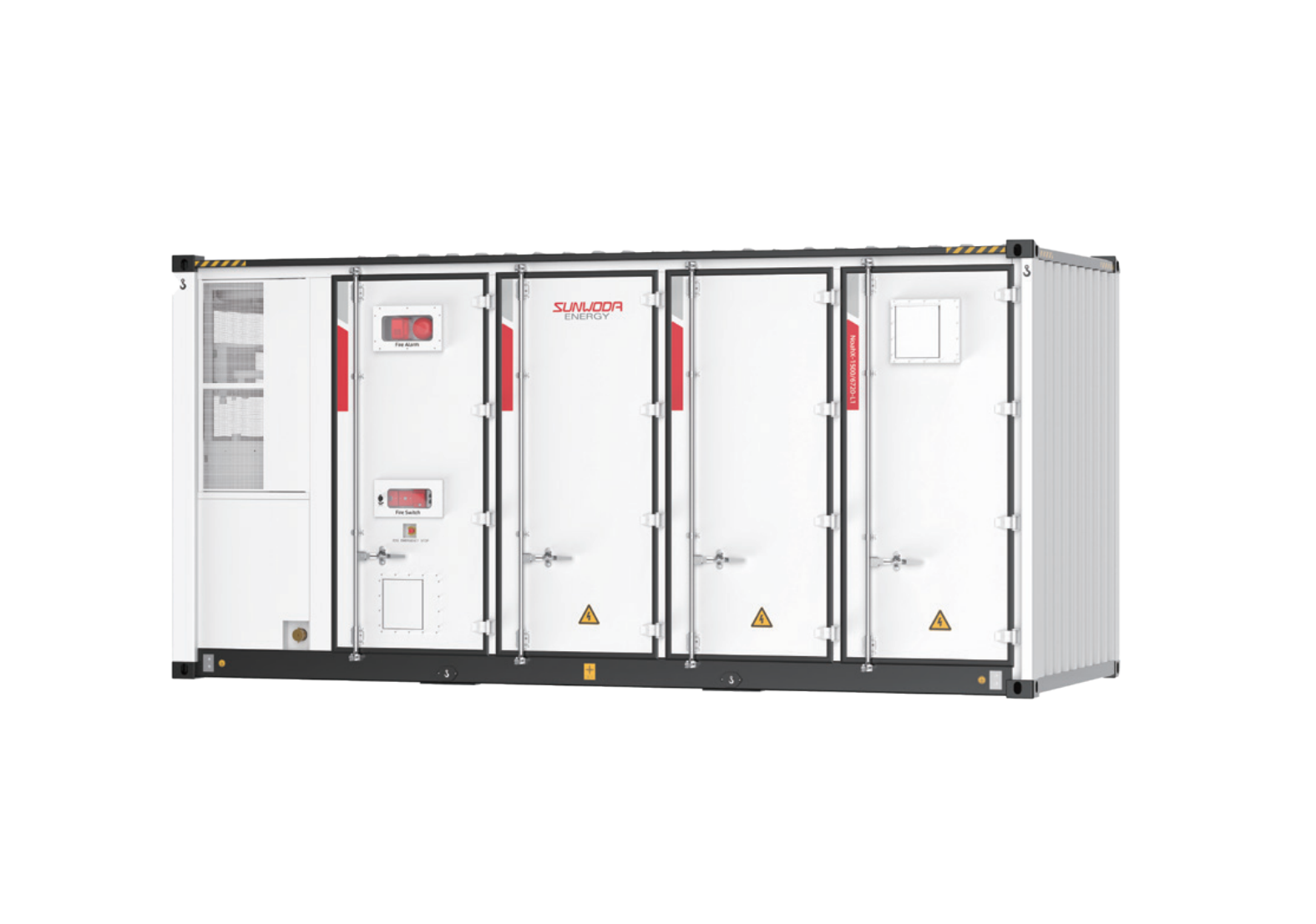

Sunwoda Liquid Cooling Containerized BESS

All-in-one design, rapid installation and deployment.
Features
Feature Description
Sunwoda LBCS (liquid -cooling Battery Container System) is a versatile industrial battery system with liquid cooling shipped in a 20-foot container. The standard unit is prefabricated with a modular battery cluster, fire suppression system, water cooling unit,  and local monitoring. LBCS is a ready-to-connect solution for energy storage applications such as peak shifting and frequency regulation. Sunwoda battery cluster modular unit consists of a standard rack-based battery module (battery pack) and a comprehensive multi-level battery management system (BMS). The team behind LBCS is ready to help you with professional integration support in terms of new or existing solar power, wind power, thermal power, and more.
High energy density & long lifespan
20ft container with energy over 4MWh and battery life extended more than 20%
Standardization
Using a standard 20-foot container, high energy density, small size, and convenient transportation
Plug-and-play
Support plug-and-play combination of two containers, flexibly suitable for the application of large energy storage power stations.
Reliable
Five-level safety design, dual fire protection, with gas emission and explosion venting design.
scene
What can we use it for
sunwoda utility scale battery storage for power generation
Generation
Provide energy storage and output management in power generation.
sunwoda grid scale energy storage
Grid Side
Provide smart load management for power transmission and distribution, and modulate frequency and peak in time according to power grid loads.
sunwoda utility scale battery storage consumption side
Consumption Side
Provide users with a peak-valley electricity price arbitrage mode and stable power quality management.
parameter275
Understand its internal structure in detail
  • Nominal Energy
    2752KWh
  • DC Round Trip Efficiency(0.5Cp)
    >93%
  • Rated Voltage
    1228.8V
  • Operating Voltage
    1075.2 ~ 1382.4V
  • Rated C-rate
    0.5CP
  • Max C-rate
    0.5CP
  • Operating Temperature
    -30℃~ 60℃
  • Relative Humidity
    0~100%
  • Altitude
    Maximum 3000m (Derating over 3000m)
  • Cooling Method
    Liquid cooling
  • Fire Suppression
    Water FSS/Aerosol(Optional)
  • Auxiliary Power Input
    3-phase 400VAC/50Hz, 480VAC/60Hz
  • BMS
    3 levels +Passive balance 200mA (Active balance 2A optional)
  • Communication Interface
    CAN/RS485/Ethernet
  • Communication Protocol
    Modbus-RTU/Modbus-TCP/IEC 61850
  • Standards & Compliance
    NFPA68/69,NFPA855,GB36276,IEC62619,IEC62933,UN38.3,UN3536,UL1973,UL9540A
  • IP Rating
    IP55/NEMA 3R
  • Dimensions (W*D*H)
    6058*2438*2591mm (20ft×8ft×8.5ft)
  • Weight
    28,000kg
Brochure/User Manual
  • Nominal Energy
    4170kWh
  • DC Round Trip Efficiency(0.5Cp)
    >93%
  • Rated Voltage
    1331.2V
  • Operating Voltage
    1164.8~1497.6V
  • Rated C-rate
    0.5CP
  • Max C-rate
    0.5CP
  • Operating Temperature
    -30℃~ 60℃
  • Relative Humidity
    0~100%
  • Altitude
    Maximum 3000m (Derating over 3000m)
  • Cooling Method
    Liquid cooling
  • Fire Suppression
    Water FSS/Aerosol(Optional)
  • Auxiliary Power Input
    3-phase 400VAC/50Hz, 480VAC/60Hz
  • BMS
    3 levels +Passive balance 200mA (Active balance 2A optional)
  • Communication Interface
    CAN/RS485/Ethernet
  • Communication Protocol
    Modbus-RTU/Modbus-TCP/IEC 61850
  • Standards & Compliance
    NFPA68/69,NFPA855,GB36276,IEC62619,IEC62933,UN38.3,UN3536,UL1973,UL9540A
  • IP Rating
    IP55/NEMA 3R
  • Dimensions (W*D*H)
    6058*2438*2591mm (20ft×8ft×8.5ft)
  • Weight
    43,000kg
