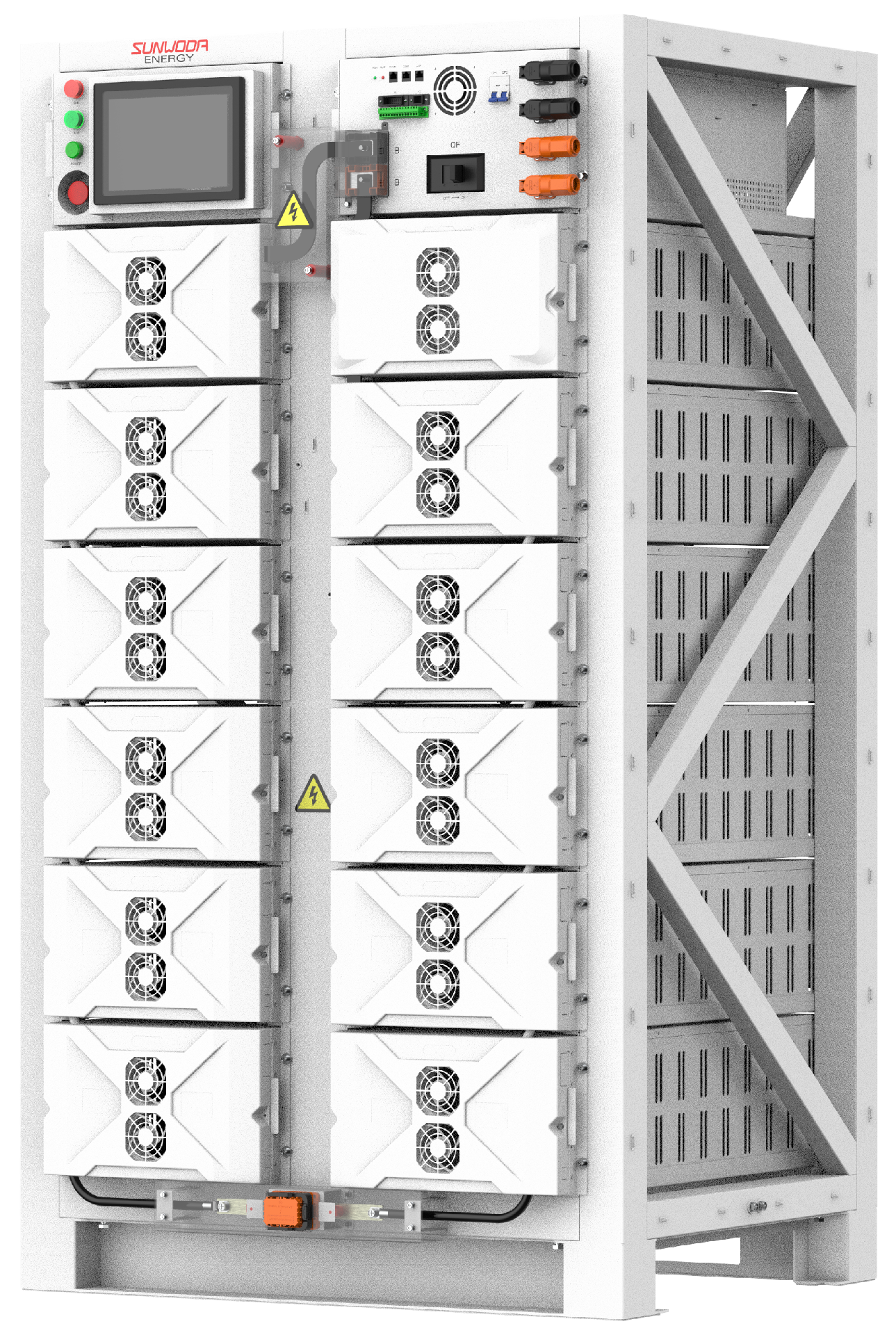

C&I Energy Storage System OASIS Rack Pro+

It can apply to demand regulation and peak shifting and C & I energy storage, etc.

Home Products

MEET Scene Parameter Contact

Features

Feature Description

Multi-Output Power

The inverter with different power can be selected.

High Performance BMS

Multi-level distributed architecture, neural network intelligent SOC and SOH algorithm.

Multi-Protection Design

Cluster level active security isolation.

Flexible Installation

Modular, plug and play, parallel expansion.

Intelligent EMS

Real-time monitoring, cloud set dimension, multi-platform display.

scene

What can we use it for

clean energy

C&I energy storage applications

c&i energy storage

Cooperate with small renewable energy power generation

c&i energy storage

User side response

c&i energy storage

Integrated energy management for C&I park

parameter

Understand its internal structure in detail

Cell Specification

3.2 V 314 Ah
Cell Type

LFP
PACK Specification

1P20S, 64 V, 20 kWh
PACK Quantity

5–10
Rated Capacity

100 kWh ~ 200 kWh
Rated Voltage

320 V ~ 640 V
Voltage Range

290 V ~ 720 V
Max. Charge / Discharge Ratio

0.7 C
Protection Degree

IP20
Ambient Temperature

0 ~ +55 ℃ (Derating above 45 ℃)
Cooling Method

Intelligent Air Cooling
Installation Method

Indoor
Communication Mode

CAN / RS485 / Ethernet
Ambient Humidity

10% ~ 95% RH (Non-condensing)
Dimension (W × D × H)

1160 × 2060 × 976 mm
Weight

< 2100 kg
Certification

UN38.3 / IEC 62619 / IEC 61000 / IEC 62477

Brochure/User Manual

Brochure - OASIS Rack Pro+

User Manual - OASIS Rack Pro+
