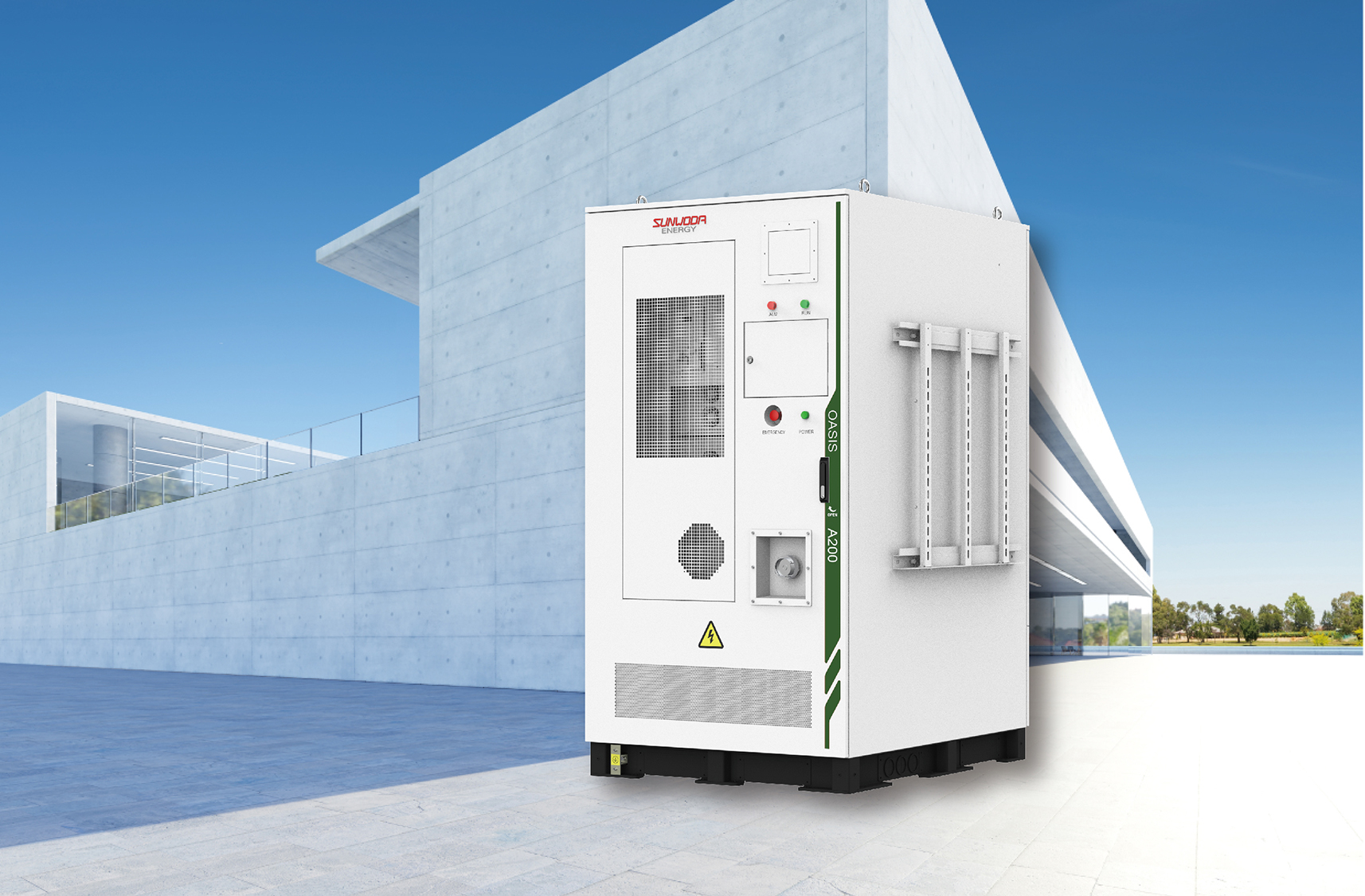

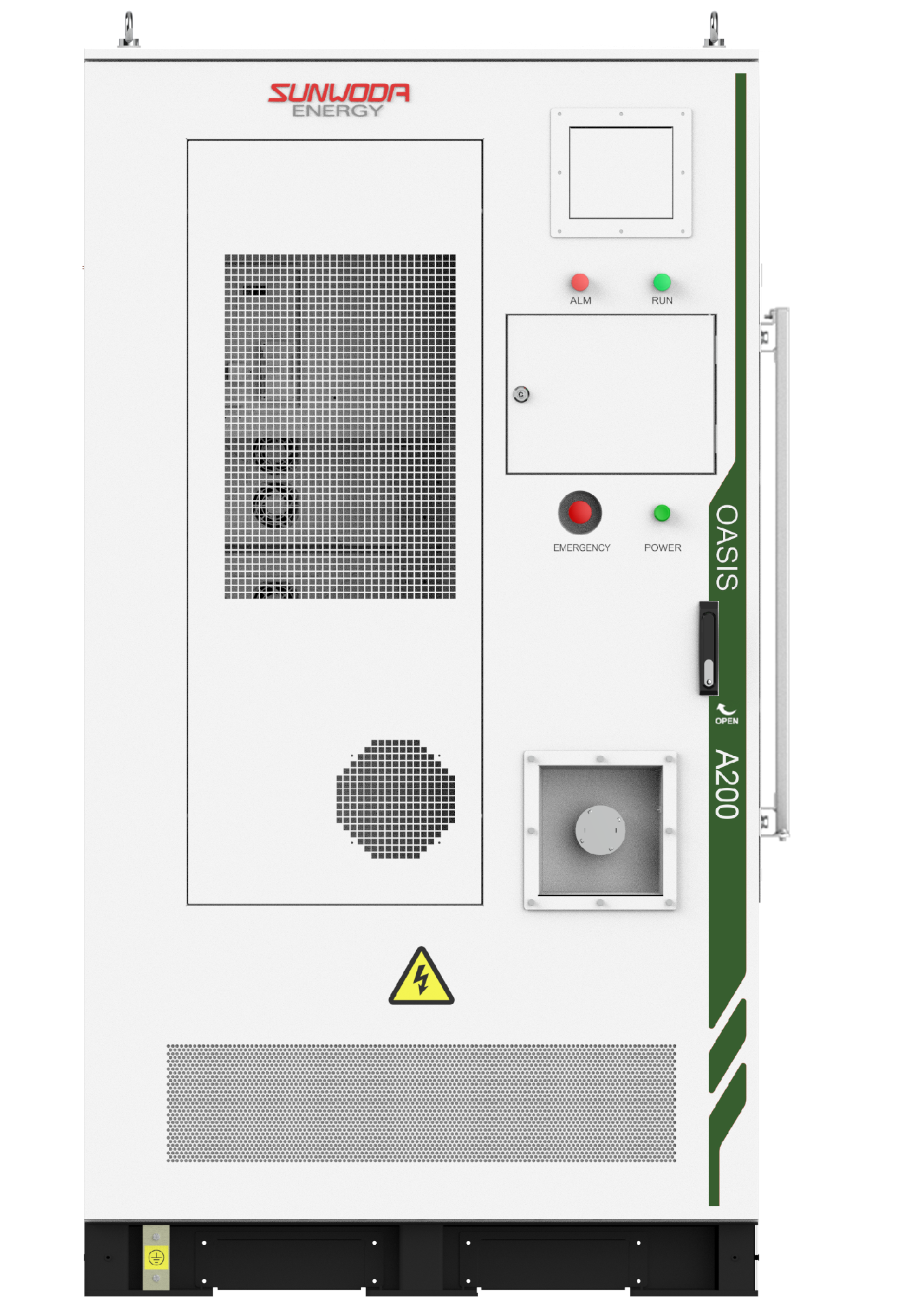

C&I Energy Storage System OASIS A200/A200 All-in-One

Features

Feature Description

The OASIS A200 is a versatile energy storage solution designed for seamless integration with photovoltaic systems and third-party hybrid inverters. It offers high system integration for flexible configurations, helping to reduce energy waste and maximize solar utilization. Ideal for peak shaving and valley filling, it enables users to store energy when costs are low and use it during peak hours to reduce electricity expenses. In case of power outages, the OASIS A200 ensures uninterrupted backup for critical loads, serving as a reliable alternative to traditional UPS systems. It also supports micro-grid applications in remote or off-grid areas and features an intelligent LCU with cloud platform capabilities for real-time monitoring, remote scheduling, and efficient energy management.

High Performance BMS

Multi-level distributed architecture, neural network intelligent SOC and SOH algorithm

Multi-Protection Design

Cluster level + system level + active explosion venting + partition security isolation

Flexible Installation

Modular, plug and play, parallel expansion

Intelligent LCU

Real-time monitoring, cloud set dimension, multi-platform display

scene

What can we use it for

C&I energy storage applications

Cooperate with small renewable energy power generation

User side response

Integrated energy management for C&I park

parameter

Understand its internal structure in detail

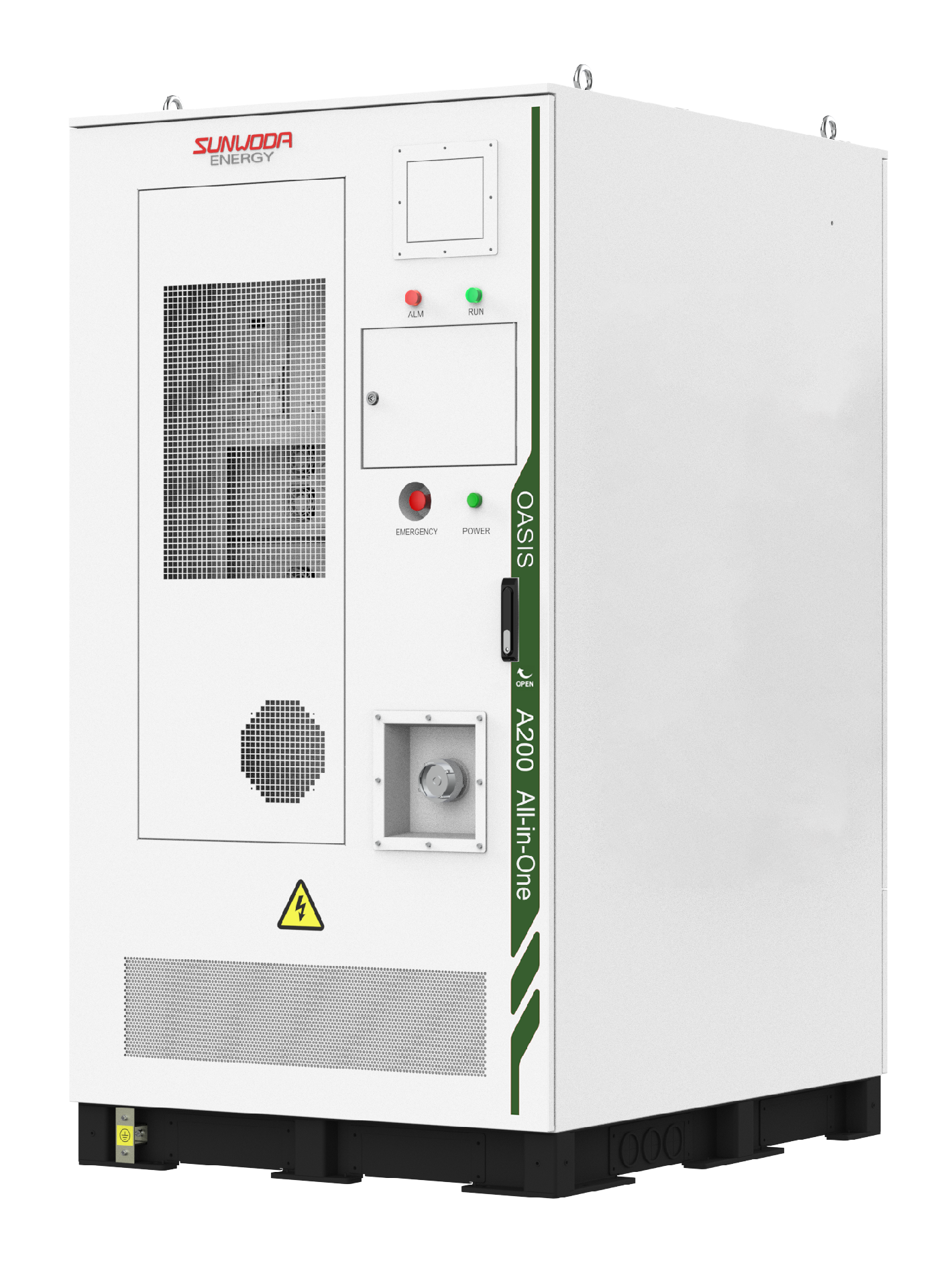

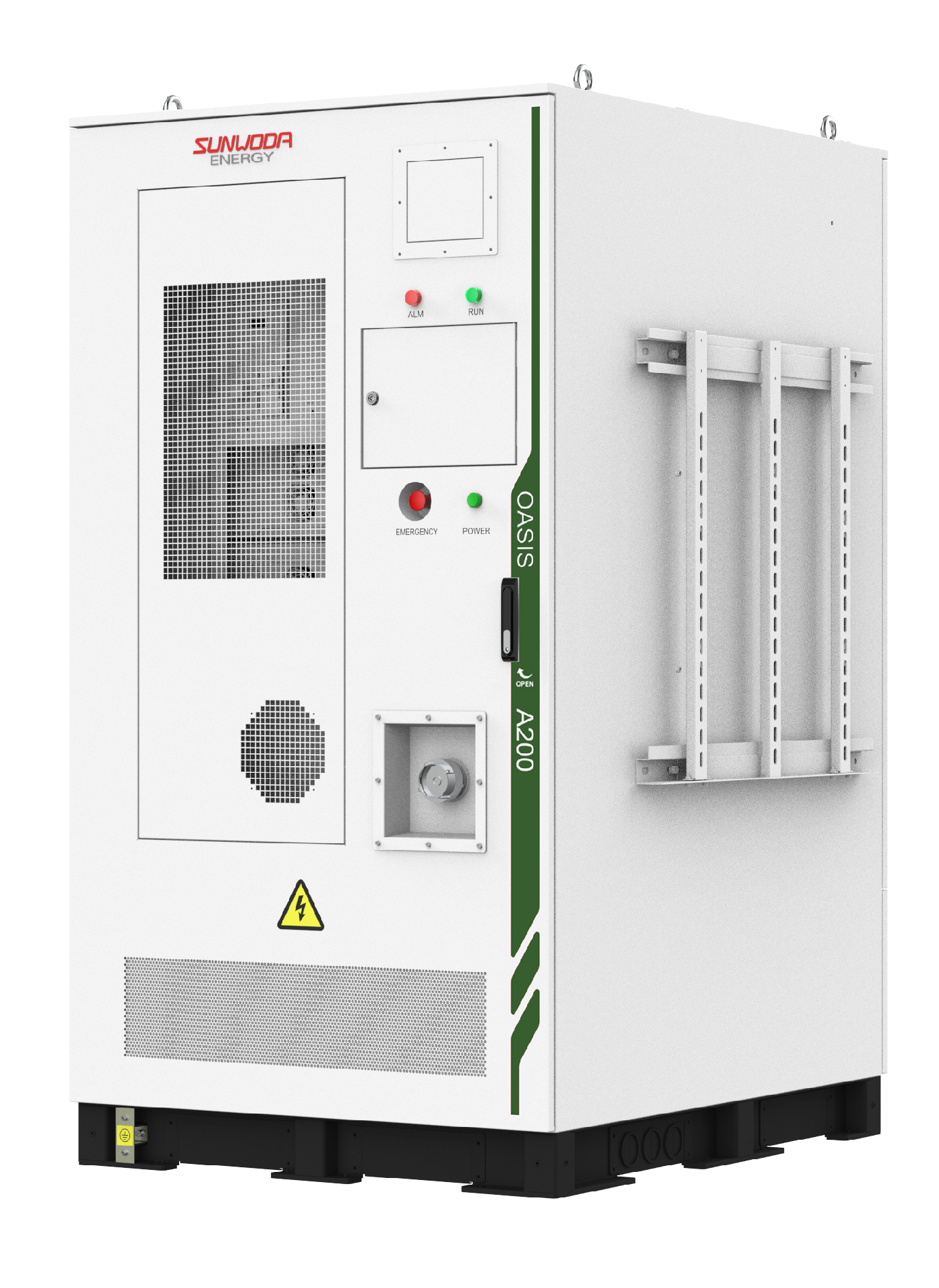

sunwoda outdoor battery cabinet OASIS A200 All-in-One

Cell Specification

3.2V 314Ah
PACK Capacity（kWh）

20
PACK quantity

6~10
Rated Capacity（kWh）

120 ~ 200
Rated Voltage（V）

384 ~ 640
Max. Charge and Discharge Ratio

0.5C
Communication Interface

CAN / RS485 / Internet
Cooling Mode

Industrial Air-conditioning
Display

Touch Screen, Cloud Platform
Installation Mode

Outdoor
Protection Grade

IP55
Ambient Temperature

-30℃ ~ +55℃ (＞45℃ derating)
Ambient Humidity

0~95%，No Condensation
Altitude

3000m
Cell Cycle Life

9000 times (25℃, 0.5C/0.5C, 90%DOD, EOL70%)*
Size（W *D* H）

1150*1375*2200mm
Weight

＜2300kg
Certification

UN38.3/IEC 62619/IEC 61000/IEC 62477
*For warranty instructions, please refer to the warranty terms.

Brochure/User Manual

Brochure-OASIS A200

Cell Type

LFP
Cell Specification

3.2V 314Ah
PACK Capacity

20kWh
Rated Capacity

200kWh
Rated Voltage

640V
Rated Output Power

125kW
THDi

<3% (Rated Power)
AC Rated Voltage

400V (300–440V)
Rated Frequency

50 / 60Hz (±5Hz)
Power Factor

-1 (leading) ~ 1 (lagging)
Communication Interface

CAN / RS485 / Internet
Cooling Mode

Industrial Air-conditioning
Display

Touch Screen, Cloud Platform
Installation Mode

Outdoor
Protection Grade

IP55
Ambient Temperature

-30℃ ~ +55℃ (>45℃ derating)
Ambient Humidity

0–95%, No Condensation
Altitude

3000m
Cell Cycle Life

9000 times (25℃, 0.5C/0.5C, 90%DOD, EOL70%)*
Dimensions (W × H × D)

1150 × 1270 × 3500mm
Weight

<2400kg
Certification

UN38.3 / IEC 62619 / IEC 61000-6-6 / IEC 62477 / IDE4105 / 4110 / GN5 / EN50549 / NTS 631
*For warranty instructions, please refer to the warranty terms.

Brochure/User Manual

Brochure-OASIS A200 All-in-One
