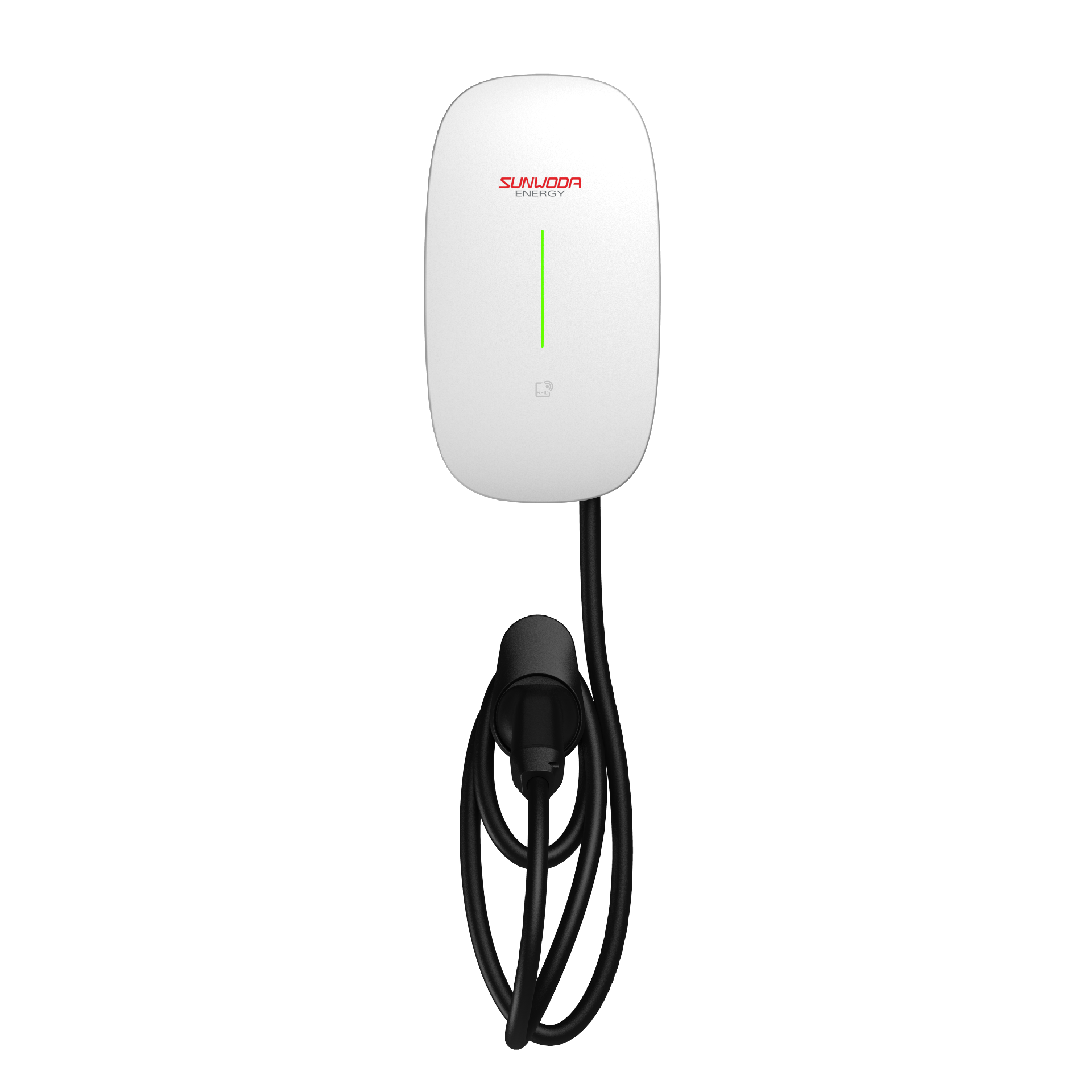

SunESS Power Wallbox

Integrated smart EV charging and energy management
Features
Feature Description
An intelligent EV charging solution that seamlessly integrates PV, energy storage, and advanced energy management to deliver safe, efficient, and user-centric charging experiences.
Intelligent and Convenient
● Integrate PV, energy storage, and EV charging into a unified system to optimize energy utilization.
● Remote smart monitoring and control via the app or website, supporting scheduled charging for time-saving efficiency.
● Supports load and energy management, controlling charging power based on household consumption and utilizing surplus PV to charge vehicles.
● RFID card swipe activation mode enables flexible and user-friendly experience design.
Safe and Reliable
● Integrated 30mA Type A and 6mA DC fault current detection.
● IP65 protection rating, suitable for indoor and outdoor use.
● Multiple Electrical Function Protection.
parameter
Understand its internal structure in detail
  • Rated Power
    11kW
  • Rated Voltage
    400V AC
  • Rated Current
    16A
  • Frequency
    50/60 Hz
  • Power Supply
    3P+N+PE
  • Charge Connector
    Type 2 Cable
  • Cable Length
    7m
  • Residual Current Device (RCD)
    30mA Type A + 6mA DC
  • Over current protection
    Supported
  • Residual current protection
    Supported
  • Ground protection
    Supported
  • Surge protection
    Supported
  • Over / Under voltage protection
    Supported
  • Over / Under frequency protection
    Supported
  • Over temperature protection
    Supported
  • Impact Protection
    IK10
  • Ingress Protection
    IP65
  • Certification
    CE, RED, RoHS
  • Certification Standard
    EN 18031-1; EN IEC 61851-1; EN IEC 61851-21-2; EN IEC 61000-6-1; EN IEC 61000-6-3; EN IEC 62311 EN 300 328; EN 300 330; EN 301 489-1/3/17
  • Operation Temperature
    -30℃~ + 50℃
  • Work Humidity
    5%~95%
  • Work Altitude
    ≤2000m
  • Dimensions (H × W × D)
    365 × 201 × 99.5mm
  • Net Weight
    3.2kg
  • Enclosure
    PC
  • Installation
    Wall-mount / Pole-mount (Optional)
  • Warranty
    3 years
