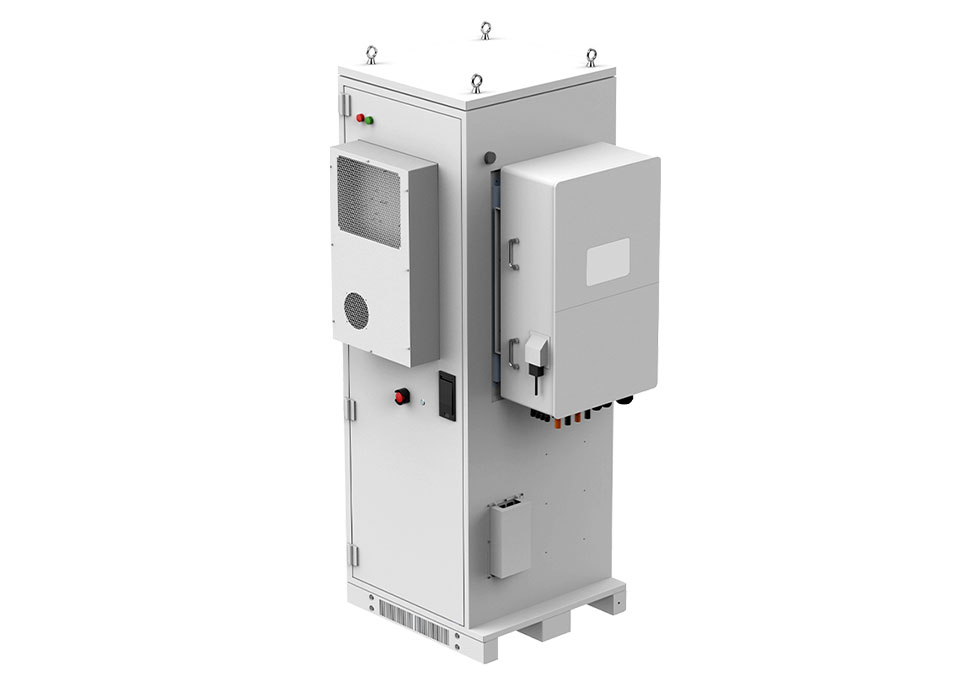

C&I Energy Storage System Sunwoda 3060 & 5060

It can apply to demand regulation and peak shifting and C & I energy storage, etc.
Features
Feature Description
Easy to install and deploy with large space utilization; Unique modular design & flexible function configuration; With self-use, peak shifting, forced charging & discharging and other working modes; Strong scalability, simple & convenient expansion on both AC and DC sides;
High efficiency
High charge/discharge efficiency
Advanced
Advanced thermal management system
High safety
Small footprint, flexible installation, easy maintenance
Modular design
Quick delivery, expansion to MW-level system
Flexible installation
It occupies a small space and can be expanded to a megawatt-level system
scene
What can we use it for
clean energy
C&I energy storage applications
c&i energy storage
Cooperate with small renewable energy power generation
c&i energy storage
User side response
c&i energy storage
Integrated energy management for C&I park
parameter305
Understand its internal structure in detail
  • AC rated input/output power
    30kVA
  • Rated capacity
    60kWh
  • Rated Voltage
    614.4V
  • Voltage range
    556.8~662.4V
  • Working Temperature
    -30℃~55℃
  • Humidity
    10 ~ 95%RH
  • Cell cycle Life
    6000 times
  • Cooling Method
    Air cooling
  • Communication Interface
    CAN/RS485/WiFi/ETH
  • Communication Protocol
    Modbus/IEC 61850
  • Altitude
    <2000m
  • Certifications
    UN38.3/CE/IEC62619/CEI 0-21/VDE-AR-N 4105/IEC 62109
  • Protection Rating
    IP55
  • Dimensions (W*D*H)
    1200*2160*750mm
  • Weight
    860kg
  • AC rated input/output power
    50kVA
  • Rated capacity
    60kWh
  • Rated Voltage
    614.4V
  • Voltage range
    556.8~662.4V
  • Working Temperature
    -30℃~55℃
  • Humidity
    10 ~ 95%RH
  • Cell cycle Life
    6000 times
  • Cooling Method
    Air cooling
  • Communication Interface
    CAN/RS485/WiFi/ETH
  • Communication Protocol
    Modbus/IEC 61850
  • Altitude
    <2000m
  • Certifications
    UN38.3/CE/IEC62619/CEI 0-21/VDE-AR-N 4105/IEC 62109
  • Protection Rating
    IP55
  • Dimensions (W*D*H)
    1200*2160*750mm
  • Weight
    880kg
